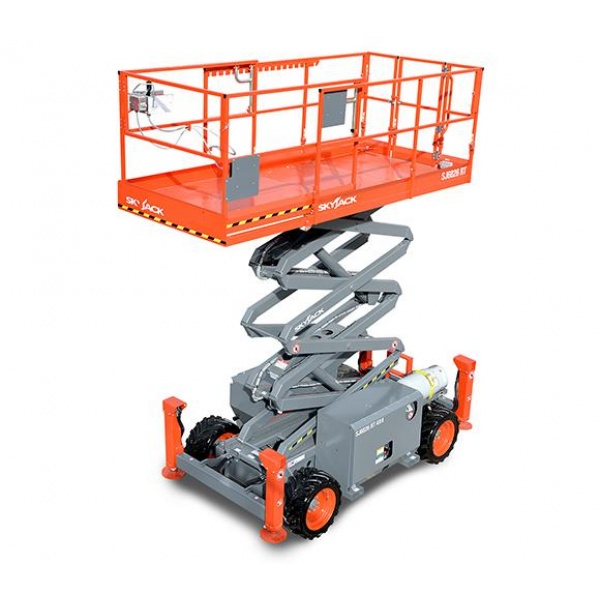

Skyjack SJ6832 RT

Work Height 38’ (11.6 m)

Raised Platform Height 32’ (9.8 m)

Lowered Platform Height 54” (1.4 m)

Overall Width 68” (1.7 m)

Overall Length 107” (2.7 m)

Stowed Height (Rails Up) 99” (2.5 m)

Stowed Height (Rails Down) 69” (1.8 m)

Platform Width (Inside Dimension) 56” (1.4 m)

Platform Length (Inside Dimension) 96” (2.4 m)

Deck Extension 5’ (1.5 m)

Ground Clearance 8” (0.2 m)

Wheelbase 80.5” (2.0 m)

Weight 7,660 lbs (3475 kg)

Gradeability 40%

Turning Radius (Inside) 60” (1.5 m)

Turning Radius (Outside) 156” (4.0 m)

Lift Time (With Rated Load) 39 sec

Drive Speed (Stowed) 3.8 mph (6.1 km/h)

Drive Speed (Raised) 0.4 mph (0.6 km/h)

Maximum Drive Height Full Height Capacity (Overall) 1,000 lbs (454 kg)

Maximum # of Persons 4

Dual Fuel (Gas,Propane)

Available Locations

• Crystal Lake
• McHenry
